Parts for Pump Model LGLD4B On Ray Murray, Inc.

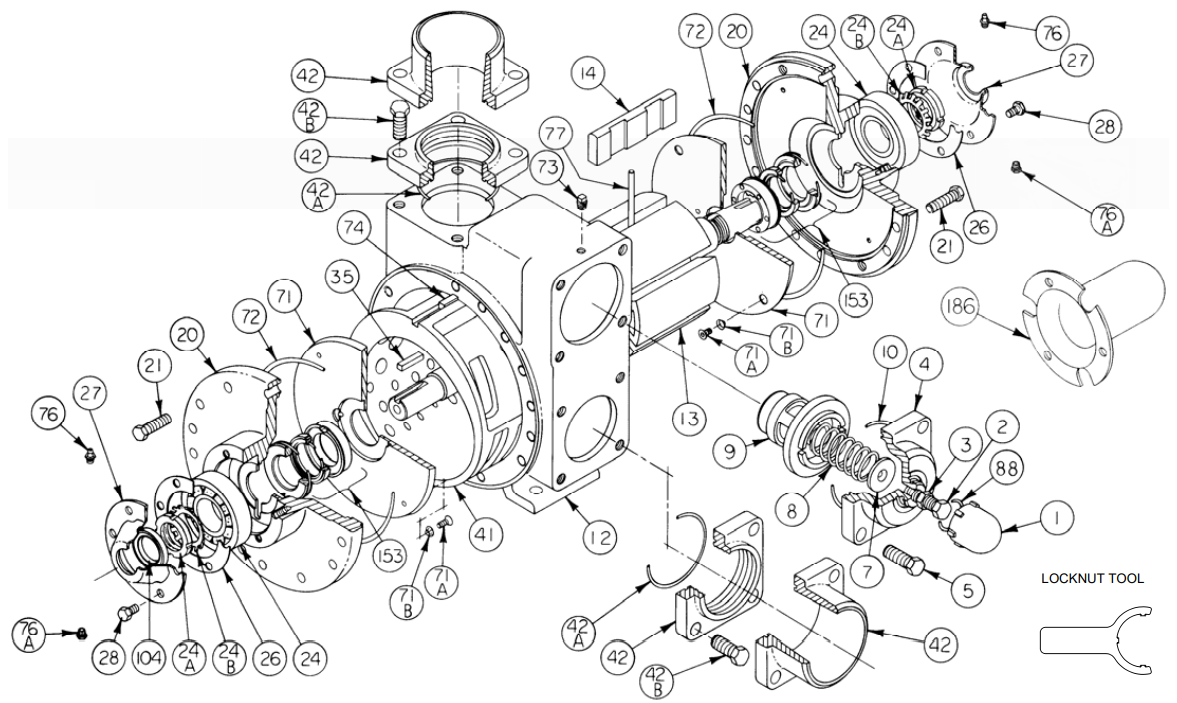

See the RMI Propane Equipment Catalog for a full parts listing and diagram

1 - 42 of 42 | Results Per Page | View | Unit of Measure

Request Information

Item #	Item Name	QTY Avbl For Sale	Stock Class					List Price	Dealer Price	UOM

920285	N/A Cap Screws - Bearing Cover, LGL(D)2, LGL(D)3, LGL3021, LGLD4B, TLGLF3C, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
317815	N/A Grease Fitting, LGL(1.25 & 1.5), LGLF(1.25 & 1.5), LGRL1.25, LGRLF1.25, LGL(D)2, LGL(D)3, LGL3021, LGLD4B, TLGLF3C, TLGLF3C, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
701992	N/A Grease Relief Fitting, LGL(1.25 & 1.5), LGLF(1.25 & 1.5), LGRL1.25, LGRLF1.25, LGL(D)2, LGL(D)3, LGL3021, LGLD4B, TLGLF3C, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
385125	N/A Gasket - Bearing Cover, LGL(D)3, LGL3021, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
331908	N/A Grease Seal, (LGL(D)3, LGL3021, LGLD4B, TLGLF4B)	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
341801	N/A Shaft Protector LGL3, LGL3021, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
920532	N/A Cap Screws - Head, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
903166	N/A Ball Bearing, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
903541	N/A Locknut - Bearing, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
903542	N/A Lock Washer - Bearing, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
909183	N/A Key - Shaft, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
652012	N/A Flange - 3" NPT, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
652007	N/A Flange - 3" Weld, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
652005	N/A Flange - 4" Weld, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
701937	N/A O-Ring - Auxiliary Inlet NPT, Weld Flange, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
920663	N/A Cap Screw - 3" NPT Flange, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
920640	N/A Cap Screw 3", 4" - Weld Flange; Blank Flange, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
920015	N/A Machine Screw - Disc, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
909634	N/A Lock Washer - Machine Screw, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
702039	N/A O-Ring - Head, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
182040	N/A Key - Liner, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
701926	N/A O-Ring - Relief Valve (R/V) Cap, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
903092	N/A Tool - Locknut, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
413957	N/A Cap - Relief Valve (R/V), LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
436310	N/A Adjusting Screw - Relief Valve (R/V), LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
432039	N/A Locknut - Adjusting Screw, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
412001	N/A Cover - Relief Valve (R/V), LGLD4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
426355	N/A Spring Guide - Relief Valve (R/V), LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
472039	N/A Spring - Relief Valve (R/V), LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
452001	N/A Valve - Relief Valve (R/V), LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
701946	N/A O-Ring - Relief Valve (R/V) Cover, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
262041	N/A Rotor and Shaft Assembly, TLGLF4B and LGLD4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
092019	N/A Vane - Duravane, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
182000	N/A Liner, TLGLF4B and LGLD4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
122009	N/A Push Rod - Composite, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
898922	N/A Kit - Maintenance TLGLF4, LGLD4	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
899022	N/A Kit - Rebuild - TLGLF4, LGLD4	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
908198	N/A Gage Plug (1/4")	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
041815	N/A Bearing Cover (Inboard)	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
012019	N/A Casing	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
032041	N/A Head	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
062039	N/A Disc	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
