Parts for Pump Models LGLD3F, LGL3F, LGLD3E, & LGL3E On Ray Murray, Inc.

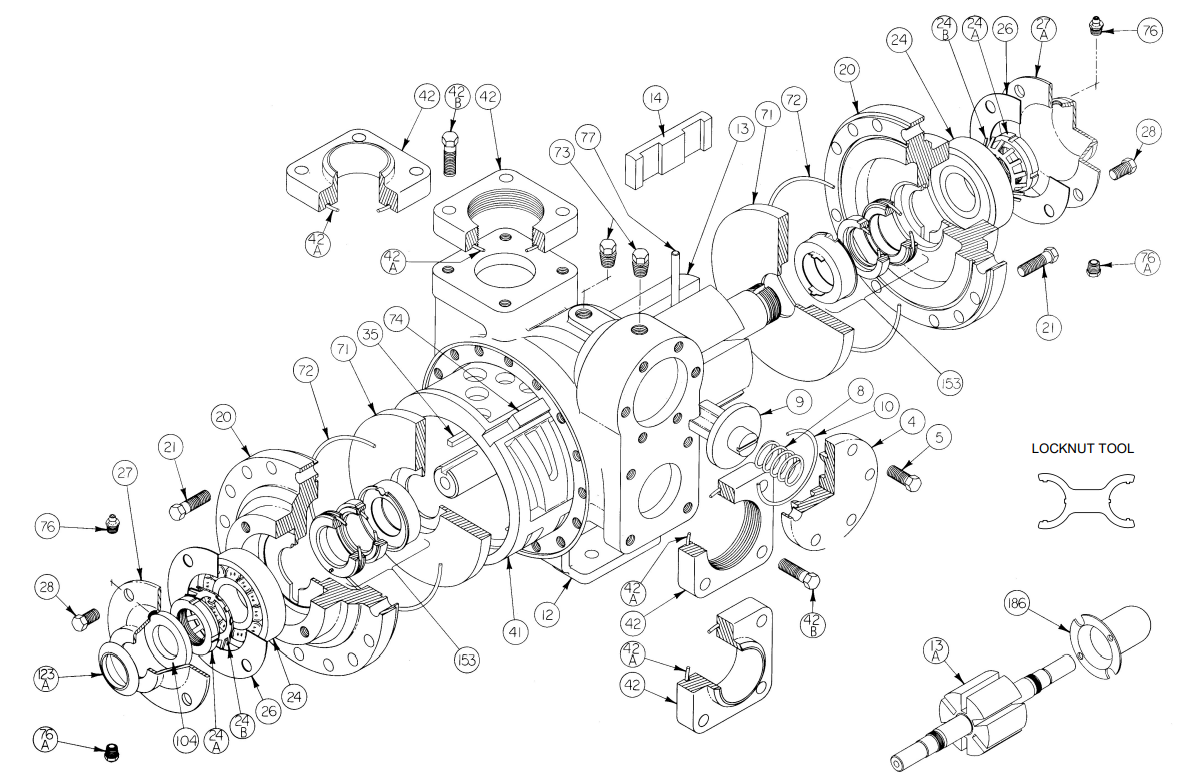

See the RMI Propane Equipment Catalog for a full parts listing and diagram

1 - 39 of 39 | Results Per Page | View | Unit of Measure

Request Information

Item #	Item Name	QTY Avbl For Sale	Stock Class					List Price	Dealer Price	UOM

LGL3021	N/A Blackmer® Replacement Pump for LGL(D)3E Models	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
920331	N/A Cap Screws - Relief Valve (R/V) Cover, LGL(D)2, LGL(D)3, TLGLF3C	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
920285	N/A Cap Screws - Bearing Cover, LGL(D)2, LGL(D)3, LGL3021, LGLD4B, TLGLF3C, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
909209	N/A Key - Shaft, 1/4" Square, LGL(D)2, LGL(D)3, LGL3021	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
317815	N/A Grease Fitting, LGL(1.25 & 1.5), LGLF(1.25 & 1.5), LGRL1.25, LGRLF1.25, LGL(D)2, LGL(D)3, LGL3021, LGLD4B, TLGLF3C, TLGLF3C, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
701992	N/A Grease Relief Fitting, LGL(1.25 & 1.5), LGLF(1.25 & 1.5), LGRL1.25, LGRLF1.25, LGL(D)2, LGL(D)3, LGL3021, LGLD4B, TLGLF3C, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
903091	N/A Tool - Locknut, LGL(D)2, TLGLF3C, LGL(D)3, & LGL3021	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
475135	N/A Spring - Relief Valve (R/V), LGL(D)3, LGL3021	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
455129	N/A Valve - Relief Valve (R/V), LGL(D)3, LGL3021	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
701925	N/A O-Ring - Relief Valve (R/V) Cover, LGL(D)3	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
920369	N/A Cap Screws - Head (Size 3), LGL(D)3	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
903523	N/A Locknut - Bearing, LGL(D)3, LGL3021	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
903524	N/A Lock Washer - Bearing, LGL(D)3, LGL3021	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
385125	N/A Gasket - Bearing Cover, LGL(D)3, LGL3021, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
185111	N/A Liner, LGL(D)3, LGL3021	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
655112	N/A Flange - National Pipe Thread (NPT), LGL(D)3	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
655102	N/A Flange - Weld, LGL(D)3	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
702002	N/A O-Ring - Flange, LGL(D)3	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
920510	N/A Cap Screw - Weld Flange, LGL(D)3	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
702041	N/A O-Ring - Head, LGL(D)3, LGL3021	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
185191	N/A Key - Liner, LGL(D)3	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
125110	N/A Push Rod, LGL(D)3, LGL3021	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
331908	N/A Grease Seal, (LGL(D)3, LGL3021, LGLD4B, TLGLF4B)	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
335225	N/A Mechanical Seal Assembly, LGL(D)3, LGL3021	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
341801	N/A Shaft Protector LGL3, LGL3021, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
903166	N/A Ball Bearing, LGLD4B, TLGLF4B	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
265149	N/A Rotor and Shaft Assembly LGL3	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
265148	N/A Rotor and Shaft Assembly LGLD3	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
898981	N/A Propane New Product Line Template	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
899081	N/A Propane New Product Line Template	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
908198	N/A Gage Plug (1/4")	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
415113	N/A Cover-Relief Valve (R/V)	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
015127	N/A Casing	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
095131	N/A Vane - Duravane (Std)	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
035128	N/A Head	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
041815	N/A Bearing Cover (Inboard)	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
041817	N/A Bearing Cover (Outboard)	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
920547	N/A Capscrew-NPT Flange	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
065112	N/A Disc	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	N/A {-}	{QUOTE}	N/A {-}
